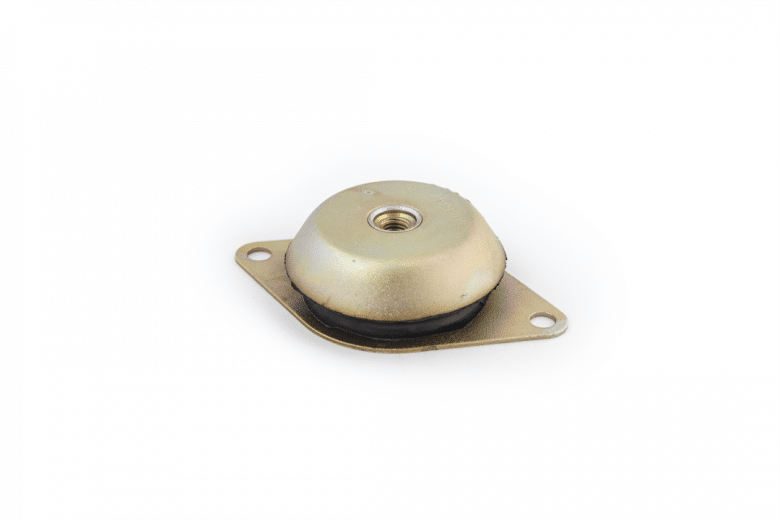

Resilient elements in natural rubber or neoprene (NBR) in shorer hardness 40 or 60 shore. Metal parts in zinc plated steel. Fitted with a mechanical stop.
DMS 077
DMS 094
DMS 108
DMS 120
DMS 144
DMS 158
Characteristics
A series of isolators with natural frequency 10-15 Hz for the recommended load range.
Dynamic factor: ca. 2.
Shear stiffness approx 1,15 x vertical stiffness.
Applications
Elastic suspension of compressors, motors, pumps, fans etc. on board ships and vehicles.
