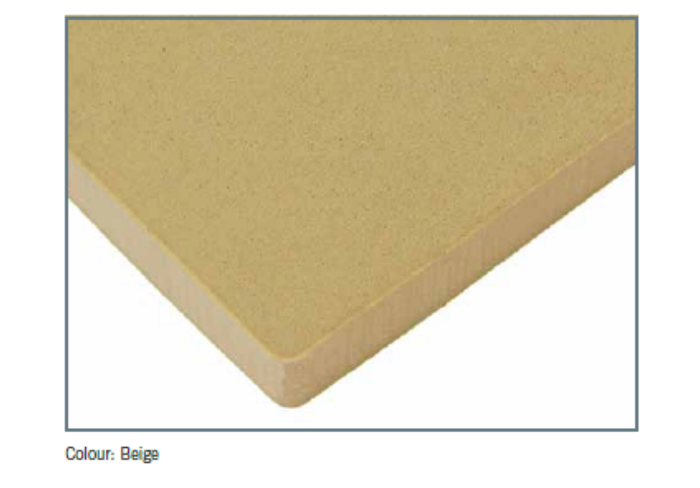

Plates
Thickness: 12.5 and 25 mm, special thicknesses on request
Length: 1,500 mm, special lengths available
Width: 1,000 mm
Stripping/smaller sizes
On request
Die-cutting, water-jet cutting, self-adhesive versions possible
Continuous static load
0.22 N/mm²
Continuous and variable loads/operating load range
0 to 0.32 N/mm²
Peak loads (rare, short-term loads)
up to 4 N/mm²
