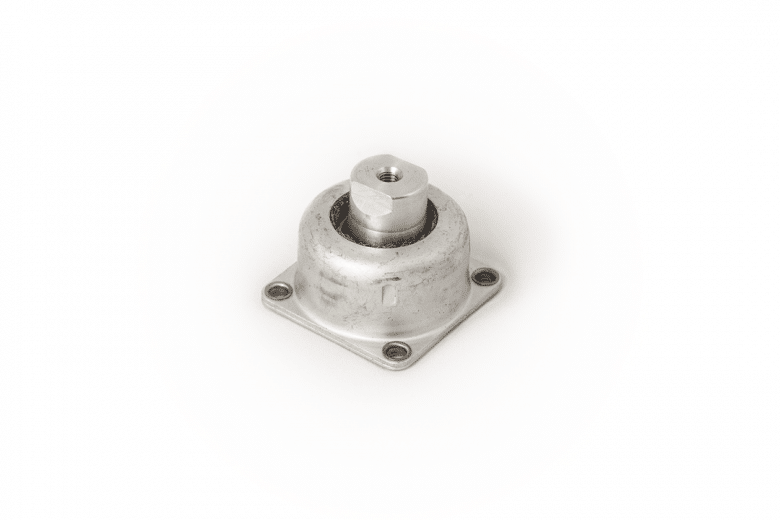

VT-7001

Description

All metal isolator. Resilient elements: steel spring, cushions and bore made of 18/8 stainless steel. Housing and flange in aluminium. These mounts meet MIL-E-5400 and AIR 7306 standards.

Weight: 0,04 kg.

Characteristics
A series of isolators with almost constant natural frequency, 7-11 Hz (within the recommended load range. Loading in compression only.

Built in snubbing limits the movements in all directions.

Maximum excitation amplitude: ± 0,4 mm
Temperature range: -90°C to +300°C
Magnification factor (Q): <4 Mechanical strength: 10 g Applications Protection of components in electronic, electric or mechanical sub-assemblies and assemblies for vehicles, aircraft and industrial applications. Note For larger loads, refer to isolator 7002 (0.7 – 60.0 daN).
