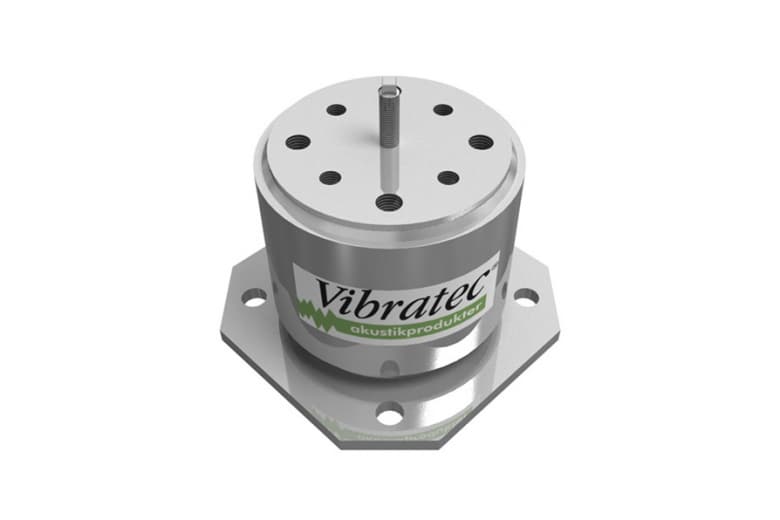

Resilient elements: Spring in high tensile steel, cushions in 18/8 stainless steel. Housing in zinc plated steel.
Characteristics
A very soft isolator with integrated adjustable snubbing. Designed especially for suspension of mobile equipment.
Natural frequency: 3,5 – 5 Hz.
Mechanical strength: 5 g.
Temperature range: -90°C – +300°C
Applications
Suspension of propulsion engines, generating sets, compressors, deck houses etc.
Notes
The built in snubbers must be adjusted when the suspended equipment has its working condition. The adjustment is done by turning the uplift limiter with a wrench.
The isolator can be delivered pre-compressed.
Type Approved by DNV-GL.
