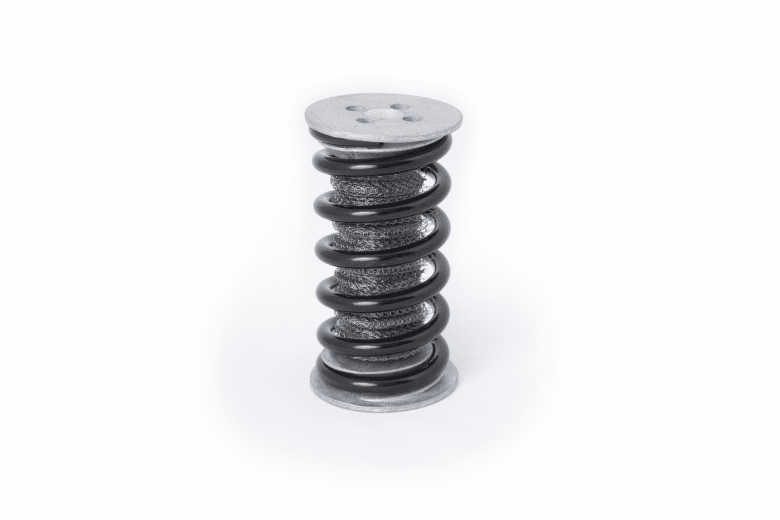

All metal isolators. Spring in high tensile steel, resilient cushion of 18/8 stainless steel wire mesh.
Schrolls: aluminium.
Weights (depending on suffix):
VT4414: 0,15 – 0.28 kg
VT4424: 1.20 – 1.50 kg
Characteristics
Very soft isolators designed for loading in compression only.
Maximum excitation amplitude: ± 1 mm.
Mechanical strength: 2 g.
Natural frequency: 3 – 4 Hz
Amplification factor: < 8
Temperature range: -90° to +300°C.
Applications
Isolation of low speed rotating machines such as fans, compressors, generating sets, engines etc. with or without seismic blocks.
Protection of fragile equipment from vibrations.
The mounts are delivered without mounting flange, which can be ordered separately.
For greater static loads, use multiple element isolators (consult us).
